Physics · Lesson 15

Van de Graaff Generator

Electrostatics Charge Accumulation Electric Breakdown Faraday's Theorem

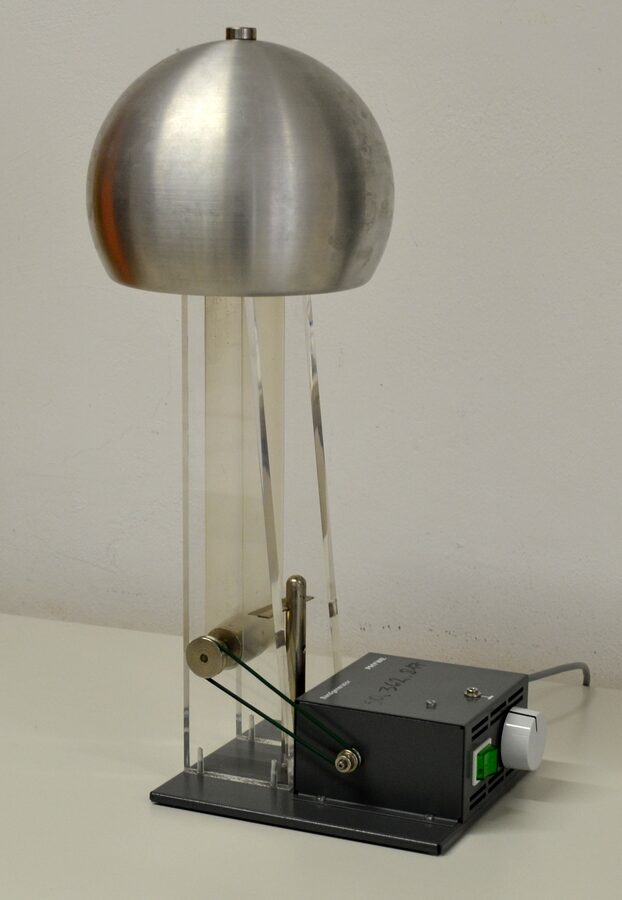

A rubber belt spins between two rollers, picking up charge by the triboelectric effect and carrying it to a metal dome. Charge accumulates until the electric field is strong enough to ionize air — a spark jumps, hair stands up, and students learn why thunderclouds have lightning.

Who Was Robert J. Van de Graaff?

Robert J. Van de Graaff (1901–1967) built his first generator in 1929 at Princeton using a silk ribbon and a tin can. By 1931 he had a 1.5-million-volt machine. His generators were used to accelerate particles into atomic nuclei for early nuclear physics experiments, effectively launching particle accelerator technology. Today, scaled-down versions are in every physics classroom, producing 100,000–400,000 volts — spectacular but safe.

How It Works

The generator has four key components working together in a continuous cycle:

  • 1The bottom roller strips electrons from the belt by the triboelectric effect, leaving the belt positively charged.
  • 2The moving belt carries positive charge up through the hollow column to the top.
  • 3A metal comb at the top collects the charge and deposits it onto the inside of the dome.
  • 4By Faraday's theorem, charge on the inside of a conductor redistributes immediately to the outer surface — the dome accumulates more and more charge each cycle.

Key Equations

Breakdown voltage: Air ionizes at approximately 3 × 10⁶ V/m (3 MV/m). When the electric field at the dome surface reaches this value, a spark jumps. For a 0.1 m sphere, this means Vmax = E × r = 3×10⁶ × 0.1 = 300,000 V.
Maximum charge Qmax: Combining E = kQ/r² and Emax = 3×10⁶ V/m gives Qmax = Emax × r² / k. A larger sphere holds exponentially more charge before sparking — doubling r quadruples Qmax.
Faraday cage: Charge always distributes to the exterior of a conductor. Inside a closed conducting shell, the electric field is zero. This is why you are safe inside a metal car or cage during a thunderstorm.

Interactive Simulator

Watch the belt carry charge up to the dome. Voltage builds until breakdown — then a spark discharges the dome. Use the panel controls to change belt speed, sphere radius, and ground rod.

Dome Voltage0 kV
Dome Charge0 μC
Belt Speed5

Real-World Applications

⚛️
Particle Accelerators Van de Graaff generators were the first particle accelerators — accelerating protons and alpha particles into target nuclei to probe atomic structure.
🔬
Classroom Demos Makes electrostatics visible and tangible — hair standing on end, sparks jumping centimetres, and repelled balloons. Abstract physics becomes thrilling.
🏛️
Science Museums Large Van de Graaff generators at science museums (like MIT's 2.5 MV machine) produce dramatic lightning bolt demonstrations for the public.
☢️
X-Ray Generation High-voltage electron beams generated by electrostatic accelerators can produce X-rays for medical imaging and materials analysis.

Practice Problems

Use V = kQ/r and E = V/r. k = 9 × 10⁹ N·m²/C². Air breakdown field = 3 × 10⁶ V/m.

Easy1. Charge accumulates on the inside of the Van de Graaff dome. True or False?

Hint: By Faraday's theorem, charge on a conductor moves to the outer surface. The inside of the dome has zero net charge.

Easy2. What carries charge up to the dome inside a Van de Graaff generator?

Hint: A rubber belt spins between two rollers, picking up charge at the bottom and depositing it at the dome.

Medium3. A Van de Graaff sphere has radius r = 0.15 m and holds charge Q = 2 μC. Calculate V = kQ/r (in V).

Hint: V = 9×10⁹ × 2×10⁻⁶ / 0.15 = 18,000 / 0.15 = 120,000 V

Medium4. Air breaks down at E = 3 × 10⁶ V/m. For a sphere of radius r = 0.1 m, what is the maximum voltage before sparking? V = E × r (in V).

Hint: V = E × r = 3×10⁶ × 0.1 = 300,000 V

Challenge5. Qmax = Emax × r² / k. For r = 0.2 m, how many μC can the sphere hold before breakdown? (Round to nearest μC.)

Hint: Q = 3×10⁶ × (0.2)² / 9×10⁹ = 3×10⁶ × 0.04 / 9×10⁹ = 120,000 / 9×10⁹ ≈ 13.3 μC
